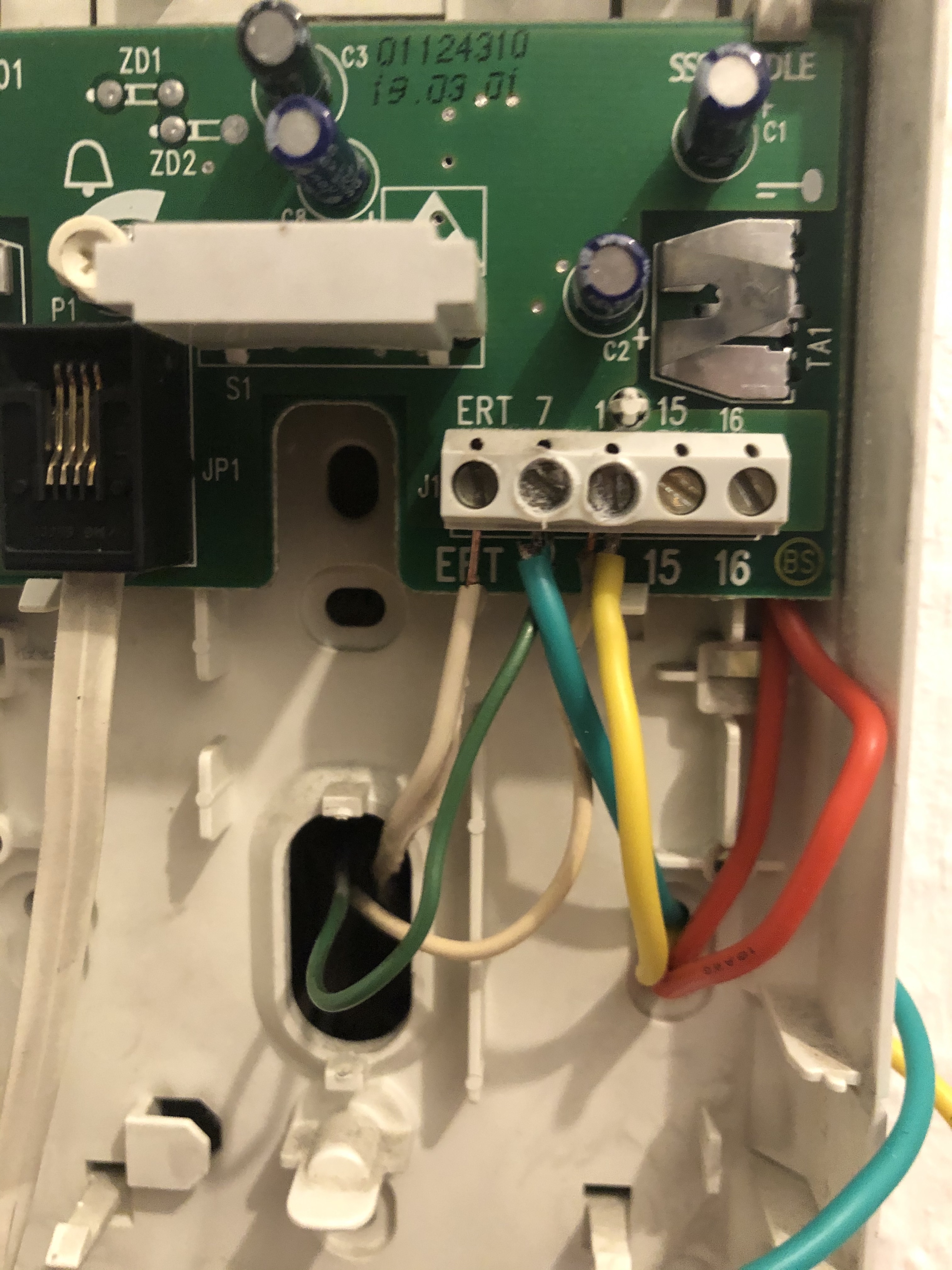

How-To Smarter Türöffner und Klingelmelder an einem 2-Draht Bussystem (Siedle HTA 711)

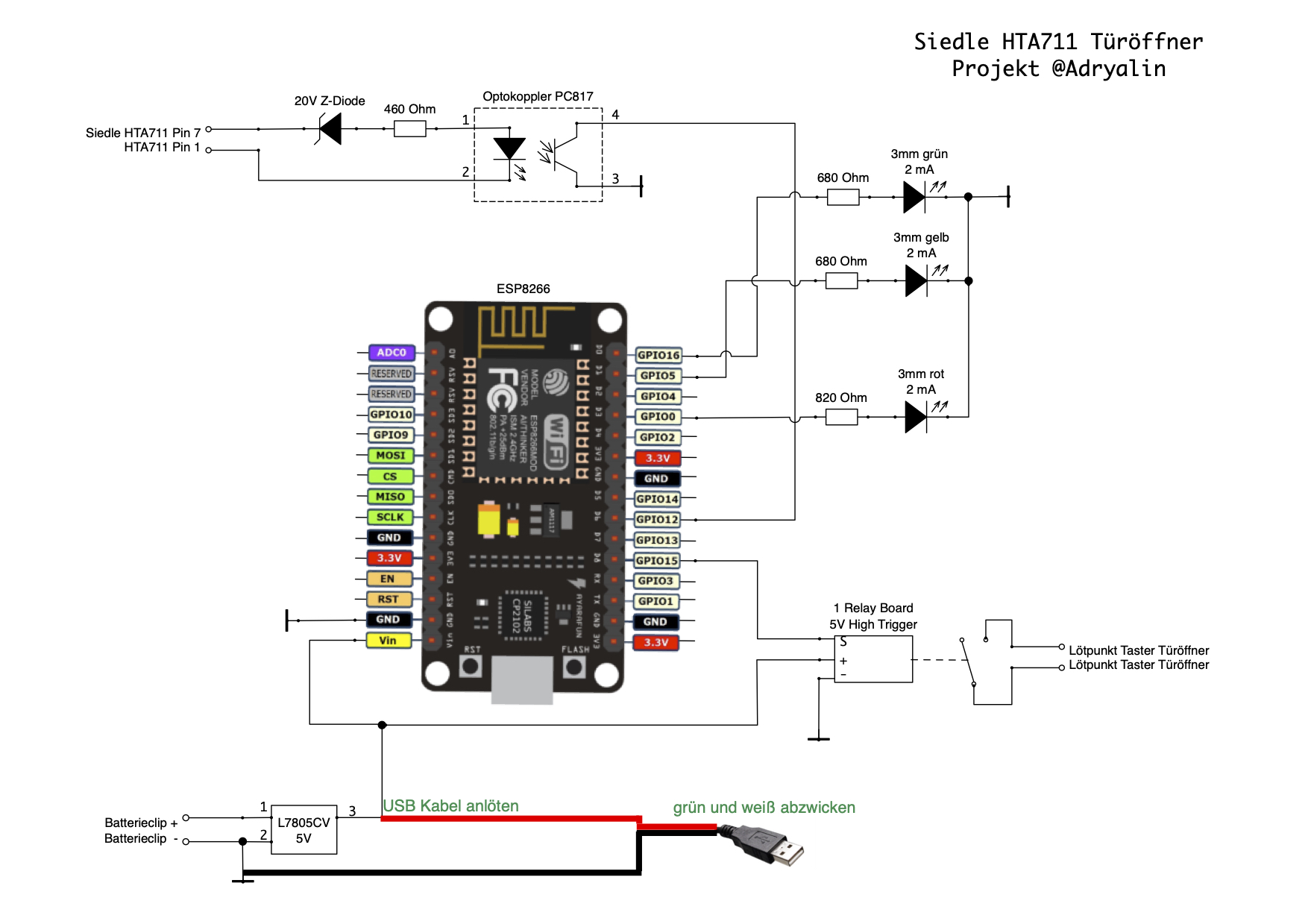

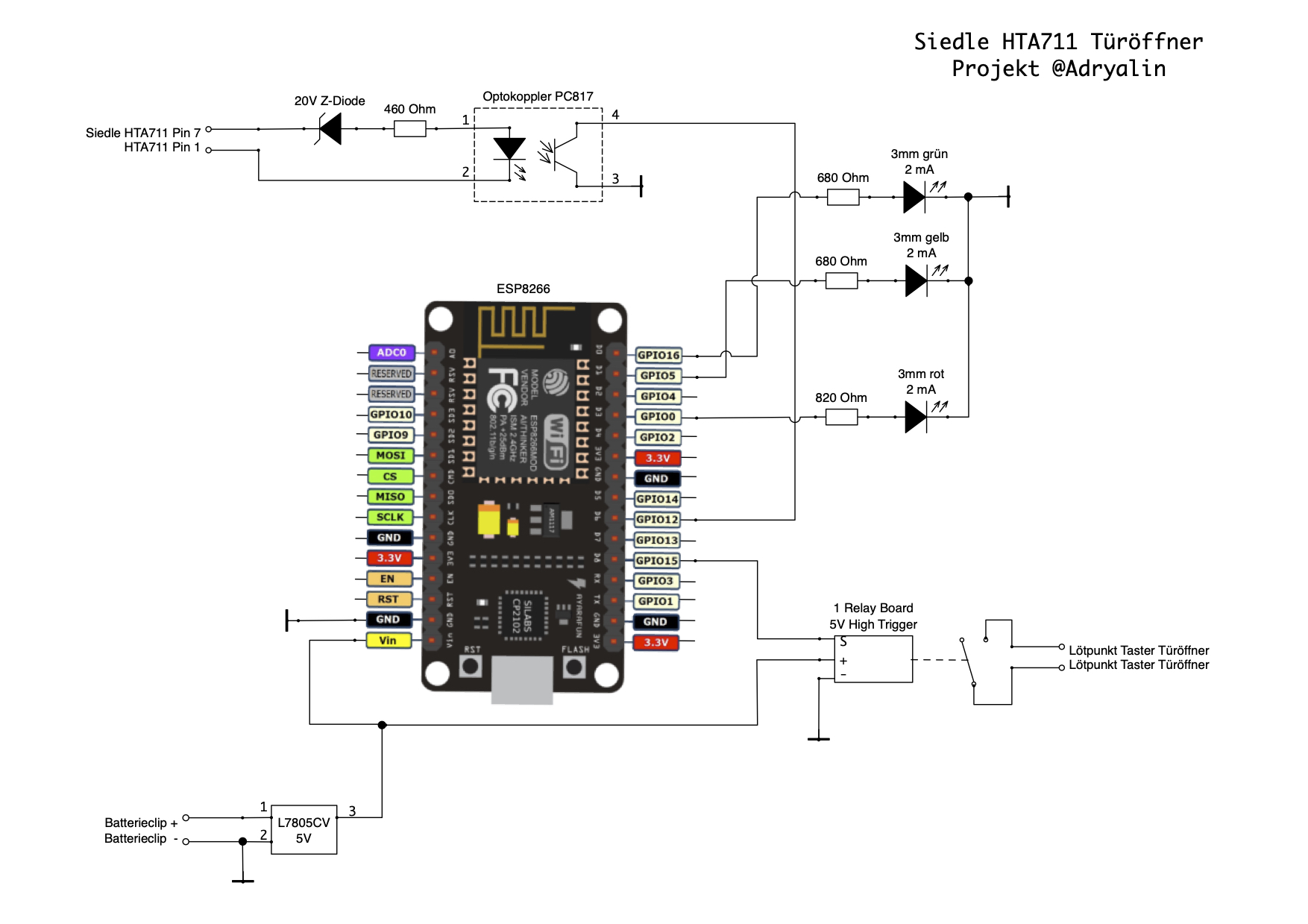

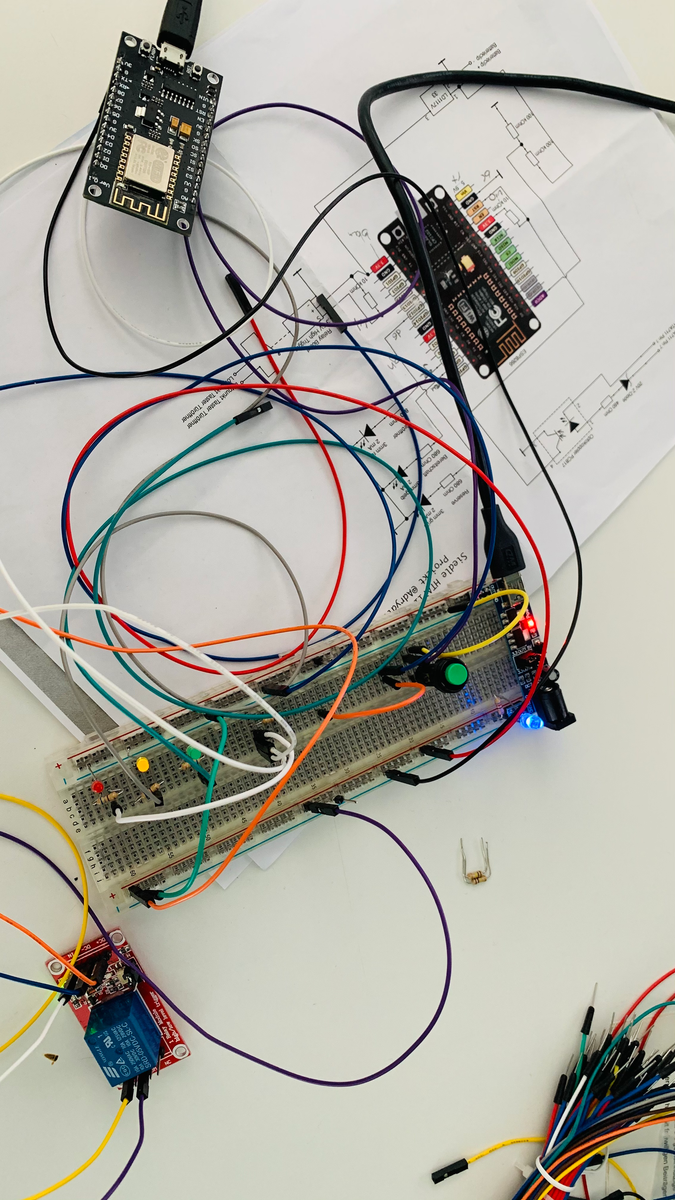

#include <ESP8266WiFi.h>
#include <PubSubClient.h>

const char* SSID = "WLANNAME";
const char* PSK = "PASSWORT";
const char* MQTT_BROKER = "IT.HURTS.WHEN.IP";
unsigned long previousMillis = 61000;
const long intervalon = 1000;
const long intervaloff = 60000;

WiFiClient espClient;
PubSubClient client(espClient);
long lastMsg = 0;
char msg[50];
int value = 0;

void setup() {
  ESP.eraseConfig();
  WiFi.begin("", "");
  pinMode(0, OUTPUT);
  pinMode(15, OUTPUT);
  pinMode(12, OUTPUT);
  pinMode(5, OUTPUT);
  pinMode(14, INPUT_PULLUP);
  Serial.begin(115200);
  setup_wifi();
  client.setServer(MQTT_BROKER, 1883);
  client.setCallback(callback);
}

void setup_wifi() {
  delay(10);
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(SSID);

  WiFi.mode(WIFI_STA);
  WiFi.begin(SSID, PSK);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("");
  Serial.println("WiFi connected");
  Serial.println("IP address: ");
  Serial.println(WiFi.localIP());
}

void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Received message [");
  Serial.print(topic);
  Serial.print("] ");
  char msg[length + 1];
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
    msg[i] = (char)payload[i];
  }
  Serial.println();
  msg[length] = '\0';

  Serial.println("Topic:");
  Serial.println(topic);
  Serial.println("Massage:");
  Serial.println(msg);

  if (strcmp(topic, "Haustueroeffnen") == 0) {
    Serial.println("I got an Order!");

    if (strcmp(msg, "gesichert") == 0) {
      Serial.println("I close it for you!");
      digitalWrite(0, LOW);
      digitalWrite(15, LOW);
      delay(2000);
      client.subscribe("Haustuerstatusist");
      digitalWrite(0, LOW);
      digitalWrite(15, LOW);
      client.publish("Haustuerstatusist", "gesichert");
    }
    else if (strcmp(msg, "offen") == 0) {
      Serial.println("I open it for you!");
      digitalWrite(0, HIGH);
      digitalWrite(15, HIGH);
      client.subscribe("Haustuerstatusist");
      client.publish("Haustuerstatusist", "offen");
      delay(3000);
      digitalWrite(0, LOW);
      digitalWrite(15, LOW);
      client.subscribe("Haustuerstatuslaueft");
      client.publish("Haustuerstatuslaueft", "gesichert");
      client.subscribe("Haustuerstatusist");
      client.publish("Haustuerstatusist", "gesichert");
    }
  }

}

void reconnect() {
  while (!client.connected()) {
    Serial.println("Reconnecting MQTT...");
    if (!client.connect("ESP8266Client")) {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" retrying in 5 seconds");
      delay(5000);
    }
  }
  client.subscribe("Haustueroeffnen");
  Serial.println("MQTT Connected... to:");
  Serial.println("Haustueroeffnen");
}

void loop() {
  if (!client.connected()) {
    reconnect();
  }
  if (digitalRead(14) == LOW) {
    digitalWrite(0, HIGH);
    Serial.println("It ringed for you!");
    client.subscribe("Klingelgedrueckt");
    client.publish("Klingelgedrueckt", "1");
    delay(1000);
    digitalWrite(0, LOW);
    client.publish("Klingelgedrueckt", "0");
  }
  digitalWrite(12, LOW);
  unsigned long currentMillis = millis();
    if (currentMillis - previousMillis >= intervaloff) {
      previousMillis = currentMillis;
      digitalWrite(5, HIGH);
    }
    else if (currentMillis - previousMillis >= intervalon) {
      digitalWrite(5, LOW);
    }
  client.loop();
}

{
            "accessory": "mqttthing",
            "type": "lockMechanism",
            "name": "Haustür Öffnen",
            "url": "192.167.1.15",
            "username": "",
            "password": "",
            "topics": {
                "setLockTargetState": "Haustueroeffnen",
                "getLockTargetState": "Haustuerstatuslaueft",
                "getLockCurrentState": "Haustuerstatusist"
},
            "lockValues": [
                "offen",
                "gesichert",
                "blockiert",
                "unbekannt"
]
},
{
            "accessory": "mqttthing",
            "type": "statelessProgrammableSwitch",
            "name": "Türklingel",
            "url": "192.167.1.15",
            "username": "",
            "password": "",
            "topics": {
                "getSwitch": "Klingelgedrueckt"
},
            "restrictSwitchValues": [
                0
]
}

{
            "accessory": "mqttthing",
            "type": "lockMechanism",
            "name": "Haustür Öffnen",
            "url": "192.167.x.x",
            "username": "",
            "password": "",
            "topics": {
                "setLockTargetState": "Haustueroeffnen",
                "getLockTargetState": "Haustuerstatuslaueft",
                "getLockCurrentState": "Haustuerstatusist"
            },
            "lockValues": [
                "offen",
                "gesichert",
                "blockiert",
                "unbekannt"
            ]
        },

/*********
  ©Adrian Zilly
  @Tueroeffner

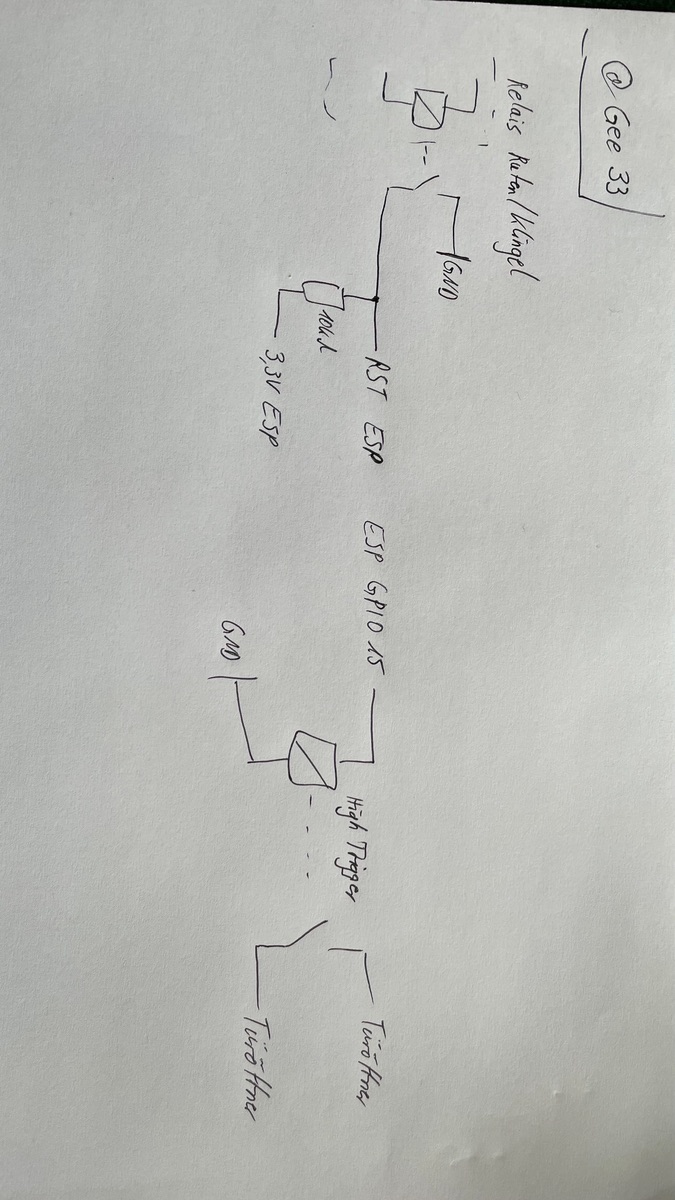

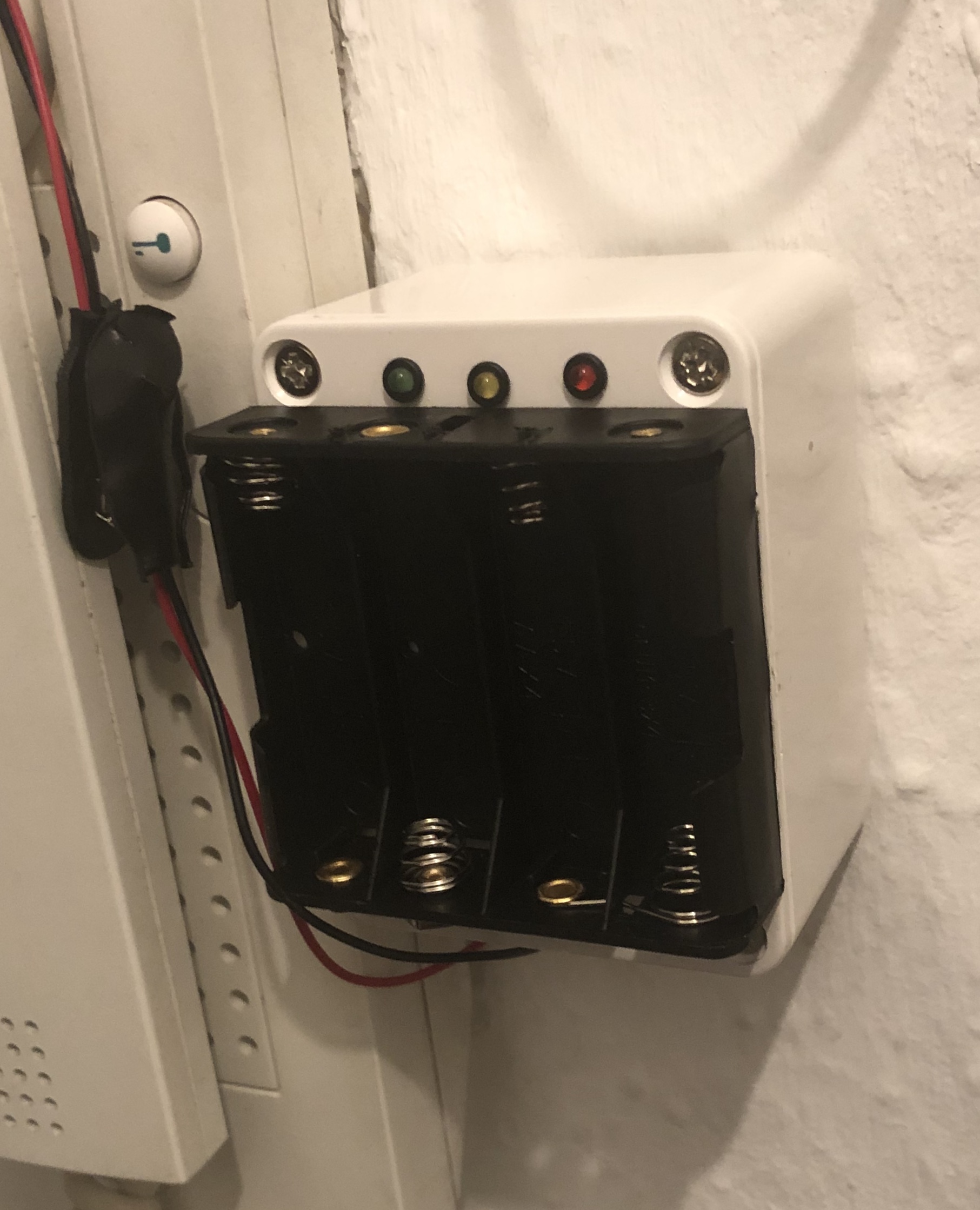

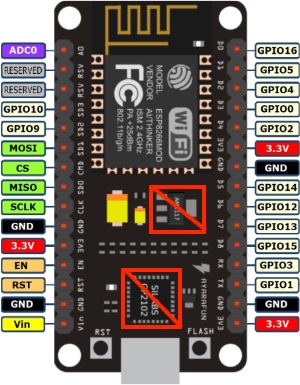

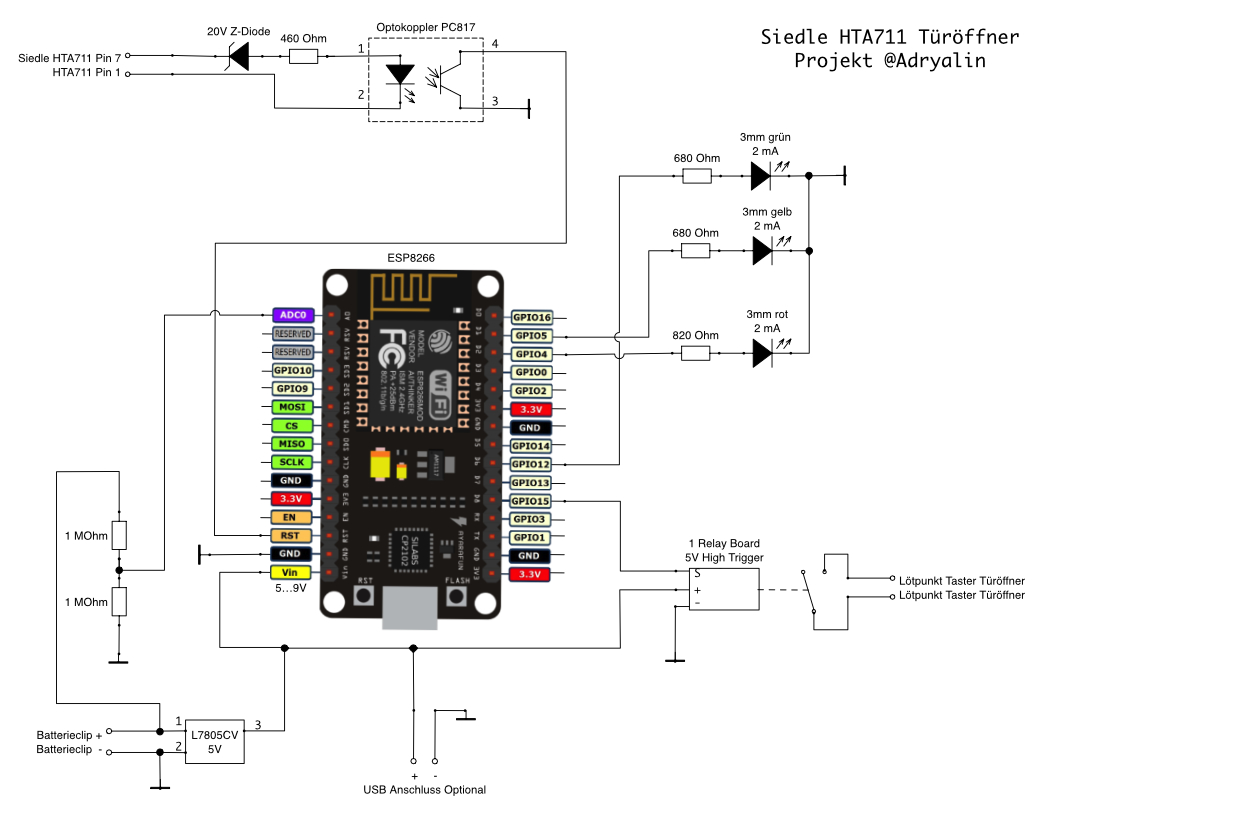

  Hardware Lib: ESP8622 NodeMCU 1.0 (ESP12E-Module)
  v3.0
*********/

#include <ESP8266WiFi.h>
#include <PubSubClient.h>
#include <ArduinoOTA.h>
#include <WiFiUdp.h>
#include <ESP8266mDNS.h>

//--------------------------------------------------
//Define Variables
int Digits = 0;

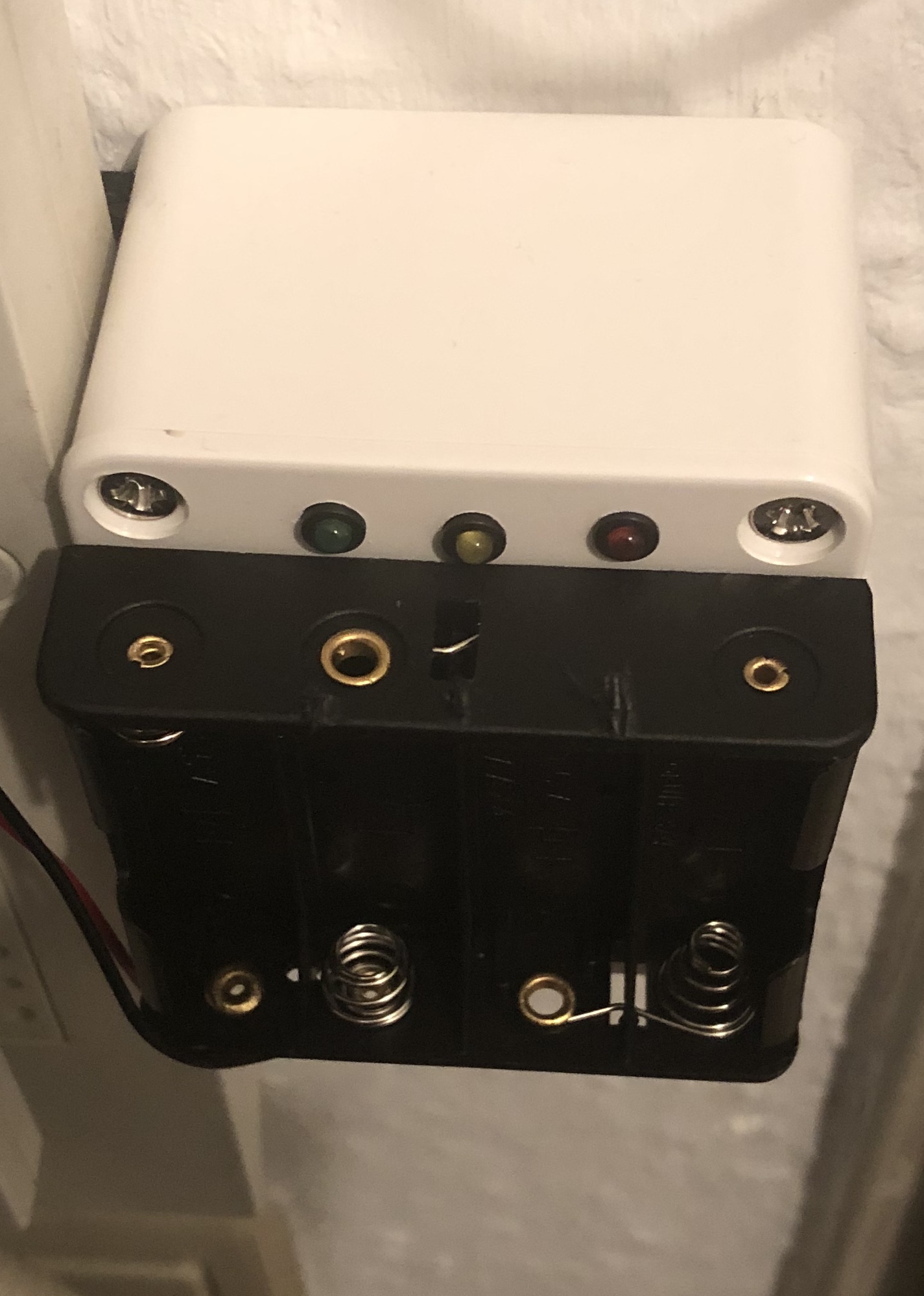

int BattVolt = 0;
int BattPerc = 0;
int valA0 = 0;
int StartMerker = 0;
int Start = 0;
int Start2 = 0;
int Start3 = 0;
unsigned long sleepMillis = 10, Sendertime = 10, previousMillis = 10, currentMillis = 10;
const long intervalon = 1000;
const long intervaloff = 1000;
int SendeDelay = 5000;
int WLANTimeout = 30;
int WLANCounts = 0;
int SetSleep = 0;

//--------------------------------------------------
//PARAMETER EINSTELLUNGEN
//Parameter Analogwertauslesen (Digit Korrektur)
int DigitsCor = 0;

//Sleep Delay Parameter
unsigned long currentSleep, SenderSleep;
const long gosleepdelay = 120000; //Verzoegerung Schlafen gehen 1000ms = 1s - Set to 100000 (2min.)

//WLAN Setup
const char* SSID = "MYSUPERWLANISTHEBESTOFTHEPLANET"; //WLAN Name
const char* PSK = "LOLOLOLOLOLOHOHOHOHOHOHOHOHO"; //Passwort WLAN

//Pin Setup
#define BattVoltIn A0 //Analog Input
int Rot = 4; //GPIO LED Rot
int Gelb = 5; //GPIO Bereitschaft
int Gruen = 12; //GPIO Klingelgedrueckt/Reserve
int Tueroeffner = 15; //GPIO 15 Tueroeffner --- HIGH

//--------------------------------------------------
//---------------
WiFiClient espClient;
PubSubClient client(espClient);
long lastMsg = 0;
char msg[50];
int value = 0;
int wifi_retry;

//---------------
/*Unterprogramm Akkulevel auslesen
  ggf. Kalibrieren mit Hilfe von "DigitsCor = Digits + 0;" hier hinter dem + entsprechende Korrektur eintragen
  Messgeraet an Akku direkt anschließen. Spannung messen und entsprechenden Korrekturwert ermitteln.
  Weitere Moeglichkeit, direkt die Punkte definieren.
  BattVolt = map(DigitsCor, 0, 282, 0, 4089); - map(Analogwert, LowDigit, HighDigit, LowValue, HighValue);
  Folglich dann die zwei Werte anpassen: map(DigitsCor, 0, !!hier Ausgegebener Digitwert bei gleichzeitiger Akkumessung eintragen!!, 0, !!hier gemessener Messwert eintragen!!);
  Nicht vergessen die gleichen Werte bei Battperc einzutragen.
*/
void AkkuStand() {
  //Volt auslesen
  Digits = analogRead(BattVoltIn);
  DigitsCor = Digits + 0; // + 0 mit Korrektur versehen.
  BattVolt = map(DigitsCor, 0, 282, 0, 4089);
  // 1d = 14,4mV / 230d = 3312mV / 284d = 4089mV
  BattPerc = map(DigitsCor, 230, 282, 0, 100);
  if (BattPerc == 0) {
    AkkuStand();
  }
  Serial.print("AkkuStand\nDigit: ");
  Serial.print(Digits);
  Serial.print("Batt Volt");
  Serial.print(BattVolt);
}

//---------------

void Close() {
  //Unterprogramm Tuer schließen
  Serial.println("I close it for you!");
  client.publish("Haustuerstatuslaueft", "gesichert");
  //delay(500);
  client.publish("Haustuerstatusist", "gesichert");
  client.publish("Haustuer", "Sicherung durchgefuehrt!");
}

//---------------

void Open() {
  //Unterprogramm Tuer oeffnen
  Serial.println("I open it for you!");
  client.publish("Haustuerstatuslaueft", "offen");
  client.publish("Haustuerstatuslaueft", "offen");
  //delay(500);
  digitalWrite(Tueroeffner, LOW);
  client.publish("Haustuerstatusist", "offen");
  client.publish("Haustuerstatusist", "offen");
  Serial.println("Haustuer wurde geoeffnet!");
  delay(3000);
  digitalWrite(Tueroeffner, HIGH);
  client.publish("Haustuerstatuslaueft", "gesichert");
  client.publish("Haustuerstatuslaueft", "gesichert");
  Serial.println("Haustuer wird geschlossen!");
  //delay(500);
  client.publish("Haustuerstatusist", "gesichert");
  client.publish("Haustuerstatusist", "gesichert");
  Serial.println("Haustuer wurde gesichert!");
  //delay(500);
}

void SendAkku() {
  //Unterprogramm Akkulevel uebertragen
  client.publish("BatterieLevelTuer", String(BattPerc).c_str(), true);
  client.publish("HaustuerAkkuDigit", String(Digits).c_str(), true);
  String mV = ("mV: " + String(BattVolt));
  client.publish("HaustuerAkku", String(mV).c_str(), true);
  String Perc = ("Perc: " + String(BattPerc));
  client.publish("HaustuerAkku", String(Perc).c_str(), true);
  Serial.print("\nHaustuerAkku:");
  Serial.print(BattPerc);
  Start3++;
}

//---------------
//Unterprogramm Callback MQTT
void callback(char* topic, byte* payload, unsigned int length) {
  Serial.print("Received message [");
  Serial.print(topic);
  Serial.print("] ");
  char msg[length + 1];
  for (int i = 0; i < length; i++) {
    Serial.print((char)payload[i]);
    msg[i] = (char)payload[i];
  }

  msg[length] = '\0';
  Serial.println(msg);

  client.publish("Haustuer", "I got an Order!");

  if (strcmp(msg, "gesichert") == 0) {
    Close();
  }
  else if (strcmp(msg, "offen") == 0) {
    Open();
  }
  else {
    Serial.print("Nichts kam an");
  }
}

//---------------

void setup() {
  //Cleanup
  ESP.eraseConfig();
  WiFi.disconnect();

  //PIN Setup
  pinMode(Tueroeffner, OUTPUT); //Relais Tueroeffner
  pinMode(Gelb, OUTPUT); //Bereitschaft
  pinMode(Rot , OUTPUT); //LED Tueroeffner
  digitalWrite(Gruen, HIGH);
  digitalWrite(Tueroeffner, HIGH); //High = Zu - LOW = Oeffnen

  //Debug Setup, nach debugging auskommentieren
  pinMode(Gruen, OUTPUT); //Klingelsignal
  digitalWrite(Gruen, HIGH);
  //------- END Debug Setup ---------

  Serial.begin(115200);

  delay(100);
  WiFi.mode(WIFI_STA);
  WiFi.begin(SSID, PSK);

  while (WiFi.status() != WL_CONNECTED && WLANTimeout > WLANCounts) {
    delay(500);
    WLANCounts++;
    Serial.print("\n Wifi Connecting..");
    Serial.print("\n Trys:");
    Serial.print(WLANCounts);
    Serial.print("/");
    Serial.print(WLANTimeout);
  }

  if (WLANCounts >= WLANTimeout) {
    ESP.restart();
  }
  else {
    Serial.println("");
    Serial.println("WiFi connected");
    Serial.println("IP address: ");
    Serial.println(WiFi.localIP());
    WLANCounts = 0;
  }

  client.setServer("192.167.1.15", 1883);
  client.setCallback(callback);

  AkkuStand();

  ArduinoOTA.onStart([]() {
    String type;
    if (ArduinoOTA.getCommand() == U_FLASH) {
      type = "sketch";
    } else { // U_FS
      type = "filesystem";
    }
    Serial.println("Start updating " + type);
  });
  ArduinoOTA.onEnd([]() {
    Serial.println("\nEnd");
  });
  ArduinoOTA.onProgress([](unsigned int progress, unsigned int total) {
    Serial.printf("Progress: %u%%\r", (progress / (total / 100)));
  });
  ArduinoOTA.onError([](ota_error_t error) {
    Serial.printf("Error[%u]: ", error);
    if (error == OTA_AUTH_ERROR) {
      Serial.println("Auth Failed");
    } else if (error == OTA_BEGIN_ERROR) {
      Serial.println("Begin Failed");
    } else if (error == OTA_CONNECT_ERROR) {
      Serial.println("Connect Failed");
    } else if (error == OTA_RECEIVE_ERROR) {
      Serial.println("Receive Failed");
    } else if (error == OTA_END_ERROR) {
      Serial.println("End Failed");
    }
  });

  ArduinoOTA.setHostname("ESP-Haustuere");
  ArduinoOTA.setPassword("nimda");
  ArduinoOTA.begin();
}

//---------------
//Unterprogramm Neu Verbinden MQTT
void reconnect() {
  while (!client.connected()) {
    Serial.println("\nReconnecting MQTT...");
    String clientId = "ESP8266Client-";
    clientId += String(random(0xffff), HEX);

    if (!client.connect(clientId.c_str())) {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      delay(1000);
    }

    else {
      client.subscribe("Haustueroeffnen");
      client.publish("HaustuerStatus", "MQTT Connected");

      char buf[16];
      sprintf(buf, "%d", StartMerker);
      const char* SendMerker = buf;

      client.publish("HaustuerStatus", SendMerker);
      Serial.println("MQTT Connected...");
      Close();
    }
  }
}

//----------------------------------------

void loop() {
  //WLAN noch verbunden? Andernfalls neu verbinden
  if (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.println("WLAN not connected, reconnecting...");
    wifi_retry = 0;
    while (WiFi.status() != WL_CONNECTED && wifi_retry < 30) {
      Serial.println(wifi_retry);
      wifi_retry++;
      Serial.println("WiFi not connected. Try to reconnect");
      delay(500);
    }
    //Falls zu oft Verbindungsversuch durchgefuehrt wurde, ESP neu starten
    if (wifi_retry >= 30) {
      Serial.println("\nReboot");
      ESP.restart();
    }
  }
  //MQTT noch verbunden? Andernfalls neu verbinden
  if (!client.connected()) {
    reconnect();
  }
  client.loop();

  //Over Air Programmierung
  ArduinoOTA.handle();
  delay(100);

  //Unterprogramme abrufen
  AkkuStand();
  SendAkku();

  //Bereitschaftsanzeige
  unsigned long currentMillis = millis();
  if (currentMillis - previousMillis >= intervaloff) {
    previousMillis = currentMillis;
    digitalWrite(Gelb, HIGH);
  }
  else if (currentMillis - previousMillis >= intervalon) {
    digitalWrite(Gelb, LOW);
  }

  //Variable ablegen mit der aktuellen Zeit fuer Ueberpruefung Schlafengehen
  currentSleep = millis();

  //Ueberpruefen ob zeit zum schlafen ist
  if (currentSleep - sleepMillis >= gosleepdelay && client.connected() && WiFi.status() == WL_CONNECTED) {
    //WLAN und MQTT noch verbunden? Andernfalls neu verbinden
    if (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.println("WLAN not connected, reconnecting...");
      while (WiFi.status() != WL_CONNECTED) {
        Serial.println("WiFi not connected. Try to reconnect");
        delay(500);
      }
    }
    if (!client.connected()) {
      reconnect();
    }

    //Ausgaenge für Schlafen vorbereiten
    sleepMillis = currentSleep;

    //Ausgaenge für Schlafen vorbereiten
    digitalWrite(Tueroeffner, HIGH);
    digitalWrite(Gruen, LOW);
    digitalWrite(Gelb, LOW);
    digitalWrite(Rot, LOW);

    //Mitteliung dass Deepsleep gestartet wird.
    client.publish("Haustuer", "END WIFI NOW and go Sleep...");
    client.publish("Haustuer", "go sleeping...");

    //ESP schlafen legen
    delay(1000);
    Serial.println("END WIFI");
    WiFi.mode(WIFI_OFF);
    delay(1000);
    Serial.println("Deepsleep Now..");
    delay(500);
    ESP.deepSleep(0);
    delay(200000);
  }
}
//--------------------------------------------------
